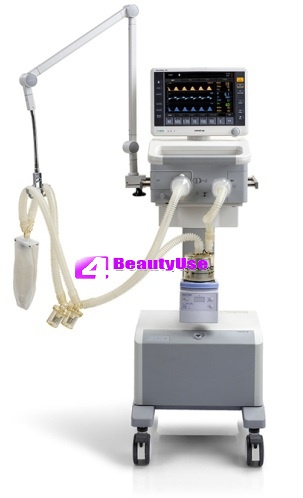

Mindray Synovent E5-ICU Ventilator

The SynoVent E5 stands out as a compact yet powerful ICU ventilator, engineered to support a wide range of patient needs—from neonates to adults—with exceptional usability. It features a modern interface combining a 12.1-inch color TFT touch-screen with physical control knobs, customizable to clinician preferences, ensuring rapid and intuitive operation.

Display & Monitoring

• The screen can simultaneously display up to 4 waveforms or 2 loops, alongside 25 monitored parameters.

• It stores 72-hour trend data and up to 1000 historical logs, with the ability to export data, trends, and screenshots via USB.

Ventilation Capabilities

• Delivers tidal volumes from 20 to 2,000 mL—broad enough for both infants and adults.

• Offers up to 14 ventilation modes, including:

  • Standard modes: V-A/C, P-A/C, V-SIMV, P-SIMV, PSV, CPAP, NIV, Duolevel, and Apnea ventilation.

  • Optional advanced modes: APRV, PRVC (including PRVC-SIMV).

Gas & Oxygen Therapy Integration

• Supports invasive and non-invasive ventilation, with compatible side-stream and mainstream CO₂ modules for EtCO₂ monitoring.

• Features rapid-shift capability between mechanical ventilation and high-flow O₂ therapy (with adjustable flow, humidity, and temperature) without moving the patient.

• Utilizes a proximal neonatal flow sensor with minimal dead space (under 0.75 mL) and low resistance, enhancing accuracy and safety in neonatal applications.

Intelligent Safety & Automation

• Integrates Intellicycle®, which automatically adjusts ventilatory support in real time.

• Offers TV setting prompts to minimize user errors and improve patient safety.

• Continuously monitors up to 31 clinical parameters, including key indicators like Work of Breathing (WOB) and Intrinsic PEEP (PEEPi).

Weaning & Assessment Tools

Built-in functionality to assess and support weaning workflows:

• RSBI (Rapid Shallow Breathing Index)

• NIF (Negative Inspiratory Force)

• P0.1 (airway occlusion pressure)
  These tools aid clinicians in evaluating respiratory drive and readiness for weaning.

Connectivity & Data Exchange

Supports robust data integration:

• Connects with hospital systems (HIS/CIS) via BeneLink and e-Gateway modules.

• Includes multiple ports: RS-232, VGA, USB, Ethernet, Nurse Call, plus CO₂/calibration connectors.

Mobility & Power Features

• Compact dimensions: approximately 470 × 430 × 500 mm; 25 kg weight (plus ~23 kg trolley).

• Can be mounted on a trolley or ceiling pendant for flexible ICU deployment.

• Optional C3 compressor enables operation in environments without central gas supply.

• Equipped with integrated Li-ion battery providing up to 90 minutes (one battery) or 180 minutes (two batteries) of backup operation.

Compliance & Certification

• CE-marked and compliant with IEC 60601-1-2 for electromagnetic compatibility.

• Designed in accordance with EU and global safety standards.
